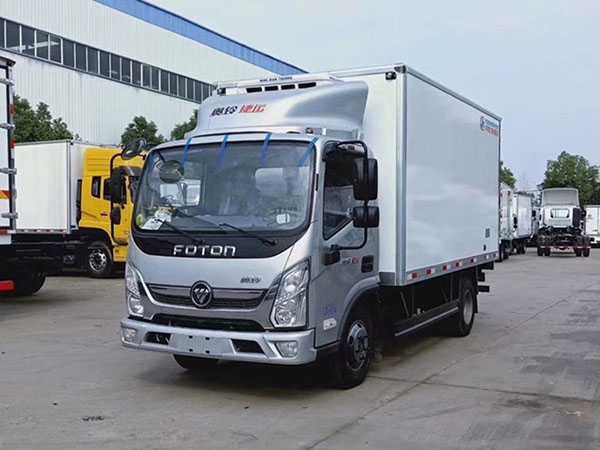

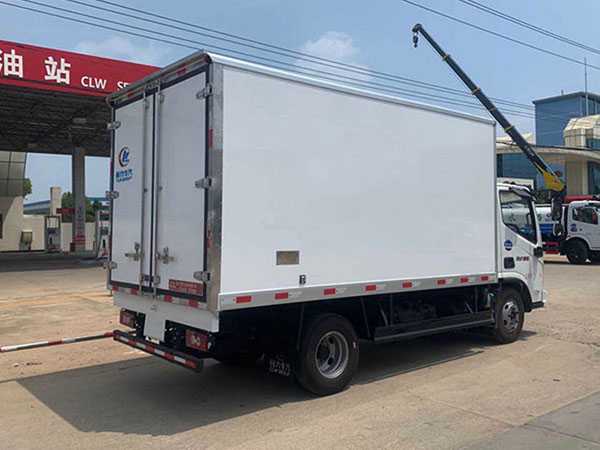

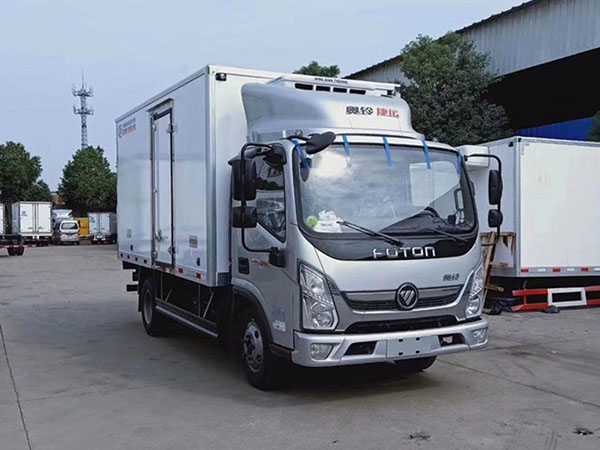

| Key Technical Data of Foton Aoling Refrigerated Trucks ( National VI Emission Standard) | |||
| Product Name | Foton Aoling refrigerated truck | External dimensions (mm) | 5995x2160x3065 |
| Vehicle Model | BJ5048XLC8JDA-AB2 | Cargo box dimensions (mm) | 4085x2000x1900 |
| Front passenger | 3 | Environmental protection/tax exemption | yes |
| Total mass (kg) | 4495 | Approach/departure angle (°) | 19/16 |
| Rated weight (kg) | 1100 | Front overhang/rear overhang (mm) | 1110/1525 |
| Curb weight (kg) | 3200 | Maximum speed (km/h) | 95 |
| Emission standards | GB3847-2005, GB17691-2018 Country VI | ||
| National VI emission standard Foton Aoling refrigerated truck chassis parameters | |||
| Chassis Model | BJ1048V9JDA-AB2 | Types of fuel | gasoline |
| Number of axes | 2 | Front track width (mm) | 1730 |
| Wheelbase (mm) | 3360 | Rear track width (mm) | 1615, 1800 |
| Number of tires | 6 | Tire specifications | 7.00R16LT 8PR, 7.50R16LT 6PR |
| National VI emission standard Foton Aoling refrigerated truck engine parameters | |||
| Engine Model | Engine manufacturers | Displacement (ml) | Power (kW) |
| Q28-130E60 | Anhui Quanchai Power Co., Ltd. | 2800 | 96 |
