| Vehicle technical parameters | |||

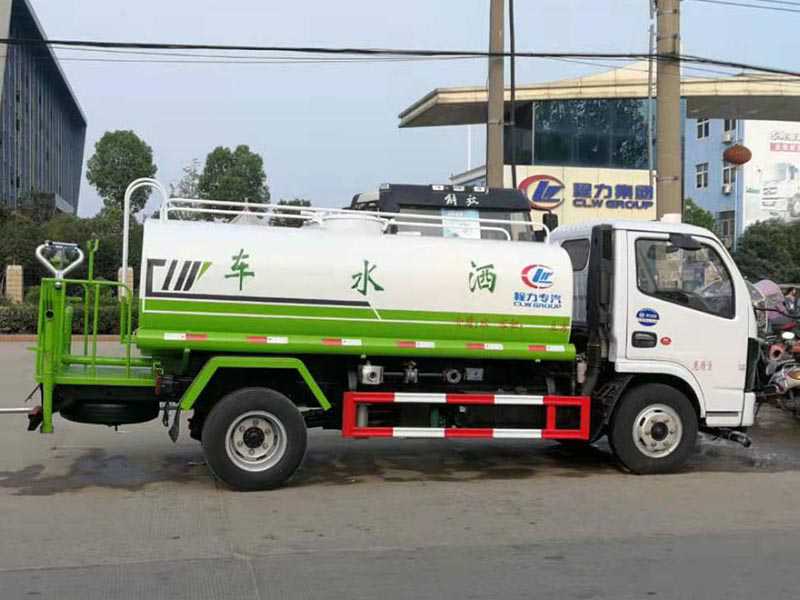

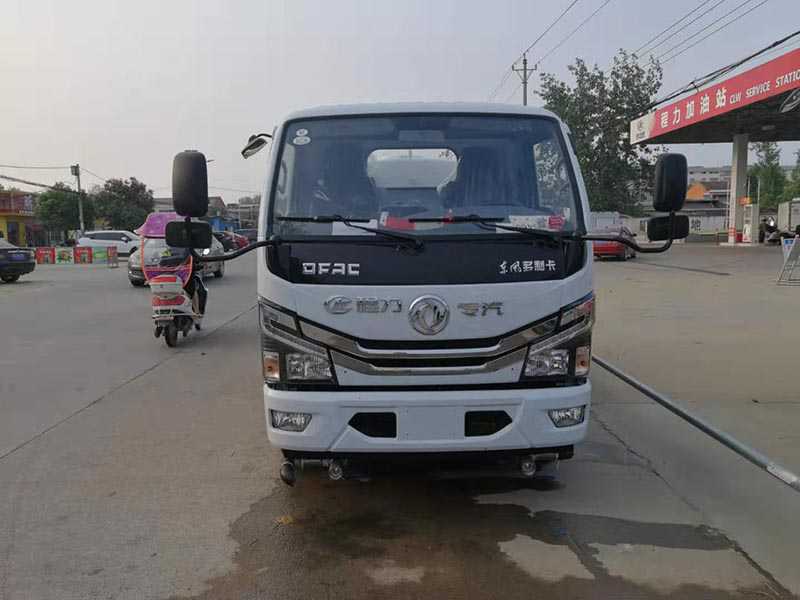

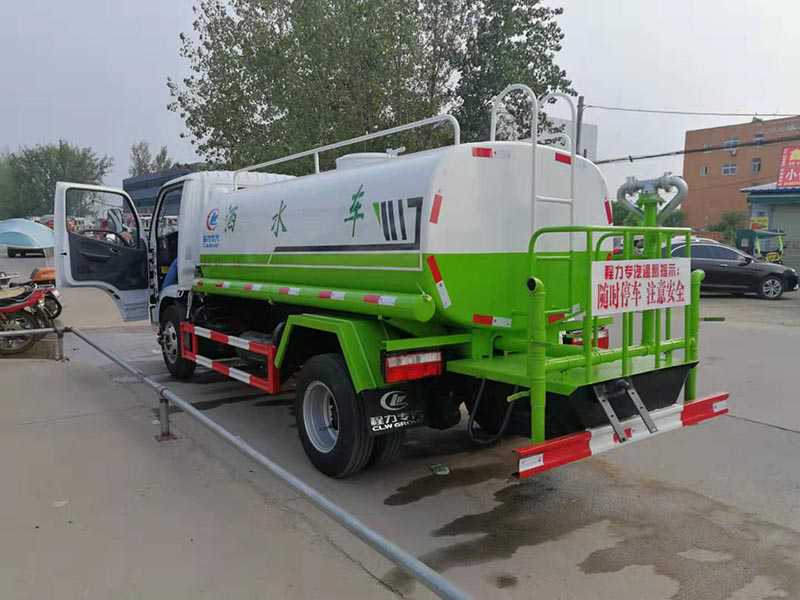

| Vehicle name: | CLW5073GPSD6 greening spray truck | Announcement batch: | 318 |
| Product trademark | Chengliwei brand | Product ID | |
| Vehicle model: | CLW5073GPSD6 | Catalog number: | (17)74 |
| Inspection-free: | release date: | 20190404 | |
| total mass | 7360(Kg) | Volume: | 4.17 |
| Rated contained mass | 3780(Kg) | curb weight | 3450(Kg) |
| Dimensions | 6500,5990×2000×2800,2400(mm) | Cargo compartment size | ××(mm) |
| Rated passenger capacity | (people) | Total mass of quasi-trailer | (kg) |
| Cab: | Front seat passenger: | 2 people) | |
| Anti-lock braking system: | have | Load capacity utilization factor | |
| Fuel type: | diesel fuel | Emission Standards: | GB3847-2005, GB17691-2018 Country VI |
| Approach / departure angle: | 18/13(°) | Front suspension/rear suspension: | 1055/2137,1055/1627(mm) |
| Number of axes: | 2 | Wheelbase: | 3308(mm) |
| Number of tires: | 6 | Tire specifications: | 7.00R16 |
| Front wheelbase (mm): | 1525,1519 | Rear wheelbase (mm): | 1498,1516 |
| Axle load: | 2640/4720 | Maximum speed: | 110 (km/h) |
| other | 1. This car only uses a 3308mm wheelbase, and the effective tank volume is 4.17 cubic meters. 2. When the rear platform with spray unit is selected, the corresponding relationship between vehicle length/tank size (tank length × long axis × short axis)/rear overhang/vehicle height is (mm): 6500/3100×1700×1150 /2137/2800; When the ordinary platform is selected, the corresponding relationship between vehicle length/tank size (tank length × long axis × short axis)/rear suspension/vehicle height is (mm): 5990/3400×1650×1100 /1627/2400. 3. Protection material: Q235B carbon steel, connection method: left and right sides and rear lower protection are all welded, rear protection section size (mm): 120×50, rear protection height from the ground (mm) :470. 4. ABS model/manufacturer: ABS/ASR-12V-4S/4M/Xiangyang Dongfeng Longcheng Machinery Co., Ltd. 5. Special device: tank, mainly used for road watering and landscaping. 6. Optional cab is installed with the chassis. | ||
| Chassis EQ1075SJ3CDF technical parameters | |||
| Chassis model | EQ1075SJ3CDF | Chassis company: | Dongfeng Motor Co., Ltd. |
| Number of tires | 6 | Number of spring leaves: | 6/6+5 |
| Tire specifications: | 7.00R16 | Steering Type: | steering wheel |
| Front track: | 1525,1519 | Rear wheelbase: | 1498,1516 |
| Chassis emission standards: | GB3847-2005, GB17691-2018 Country VI | ||
| Fuel type: | diesel fuel | batch: | 320 |
| engine model | Engine manufacturer | Displacement (ml) | Power(kw) |
| D20TCIF1 YCY24140-60 CA4DB1-11E6 ZD30D16-6N CY4BK461 CY4BK161 Q23-115E60 H20-120E60 CA4DB1-13E6 |
Kunming Yunnei Power Co., Ltd. Guangxi Yuchai Machinery Co., Ltd. China FAW Group Co., Ltd. Dongfeng Light Engine Co., Ltd. Dongfeng Chaoyang Chaochai Power Co., Ltd. Dongfeng Chaoyang Chaochai Power Co., Ltd. Anhui Quanchai Power Co., Ltd. Anhui Quanchai Dynamic Co., Ltd. China FAW Group Co., Ltd. |
1999 2360 2207 2953 3707 3856 2300 2000 2207 |
93 103 81 120 95 105 85 90 95 |
