| Vehicle technical parameters | |||
| Vehicle name: | HLW5041GSS5EQ sprinkler truck | Announcement batch: | 307 |
| Vehicle model: | HLW5041GSS5EQ | Catalog number: | (17)104 |
| Inspection-free: | release date: | 20180504 | |
| total mass | 4495(Kg) | Volume: | 1.85 |
| Rated contained mass | 1765(Kg) | curb weight | 2600(Kg) |
| Dimensions | 5350×1930×2300(mm) | Cargo compartment size | ××(mm) |
| Rated passenger capacity | (people) | Total mass of quasi-trailer | (kg) |
| Cab: | Front seat passenger: | 2 people) | |
| Anti-lock braking system: | have | Load capacity utilization factor | |
| Fuel type: | diesel fuel | Emission Standards: | GB17691-2005 National V, GB3847-2005 |
| Approach / departure angle: | 21/15(°) | Front suspension/rear suspension: | 1230/1520(mm) |
| Number of axes: | 2 | Wheelbase: | 2600(mm) |
| Number of tires: | 6 | Tire specifications: | 6.50-16 10PR,6.50R16 10PR |
| Front wheelbase (mm): | 1450 | Rear wheelbase (mm): | 1470 |
| Axle load: | 1800/2695 | Maximum speed: | 103 (km/h) |

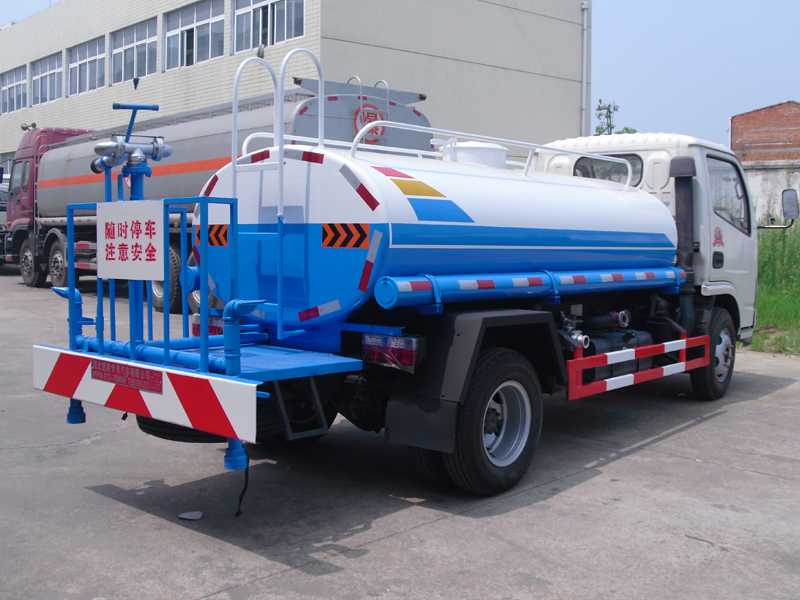

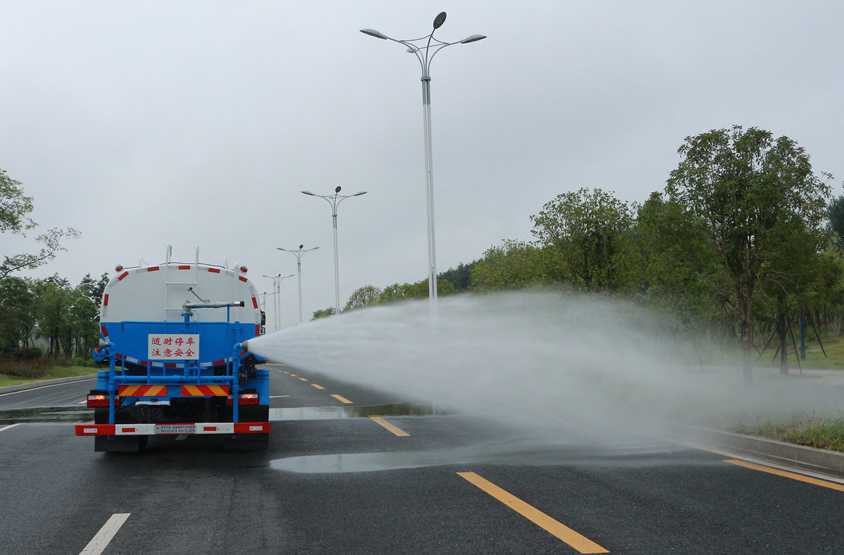

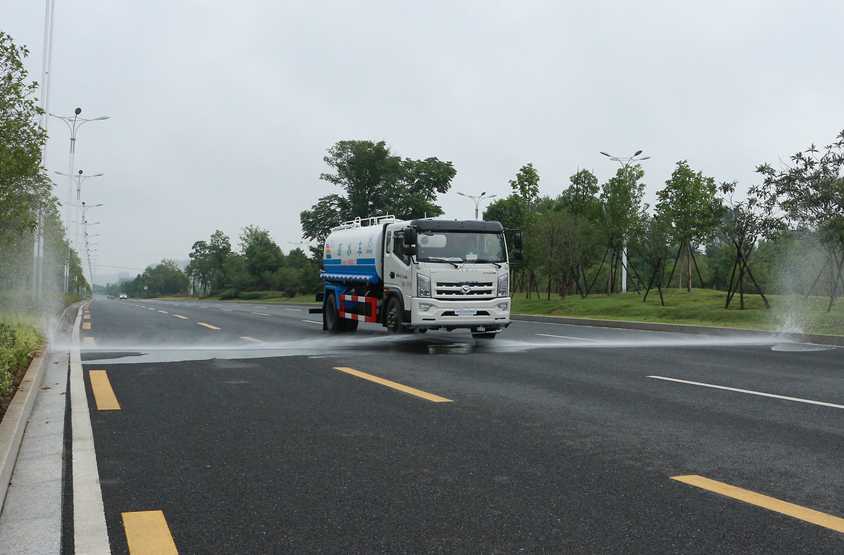

| other | This vehicle is used for spraying road surfaces; the special equipment includes a tank and a sprinkler pump. The effective volume of the tank is 1.85 cubic meters. The overall dimensions of the tank (long × long axis × short axis) (mm): 2400 × 1320 × 860. The material of the side and rear protection devices is Q235; the side protection and the frame are connected by bolts. The upper protection adopts welding connection, the cross-section size of the rear protection is: 100×50 (mm), and the height from the ground: 380 (mm). The cab can be optionally installed with the chassis, and the vehicle color and text spraying position can be changed. ABS manufacturer and model: Xiangyang Dongfeng Longcheng Machinery Co., Ltd./ABS/ASR-24V-4S/4M. | ||
| Chassis EQ1041SJ3BDC technical parameters | |||
| Chassis model | EQ1041SJ3BDC | Chassis company: | Dongfeng Motor Co., Ltd. |
| Number of tires | 6 | Number of spring leaves: | 5/7+3 |
| Tire specifications: | 6.50-16 10PR,6.50R16 10PR | Steering Type: | steering wheel |
| Front track: | 1450 | Rear wheelbase: | 1470 |
| Chassis emission standards: | GB17691-2005 National V, GB3847-2005 | ||
| Fuel type: | diesel fuel | batch: | 310 |
| engine model | Engine manufacturer | Displacement (ml) | Power(kw) |
| D19TCIE1 4A2-88C50 4F20TCIE5 |
Kunming Yunnei Power Co., Ltd. Anhui Quanchai Power Co., Ltd. Changchai Co., Ltd. |
1910 2270 1995 |
75 65 70 |
| Logo company: | 3M China Co., Ltd., Changzhou Huarisheng Reflective Materials Co., Ltd. | Vin vehicle identification code: | LGDCH81C××××××××× |
