| Vehicle technical parameters | |||
|---|---|---|---|
|
Product Trademark |
Chengli brand |
Announcement batch |
383 (Extended) |
|
Product Name |

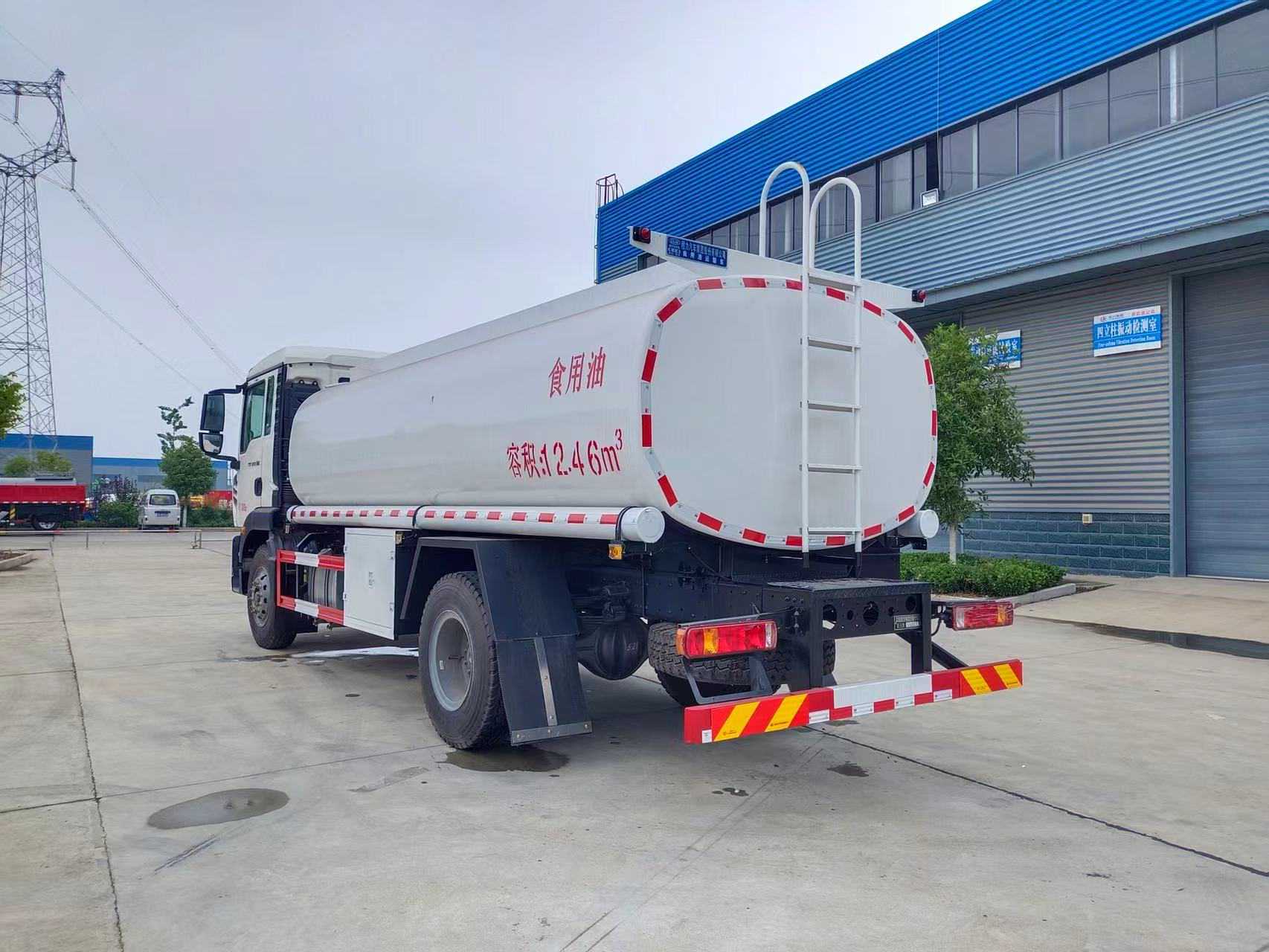

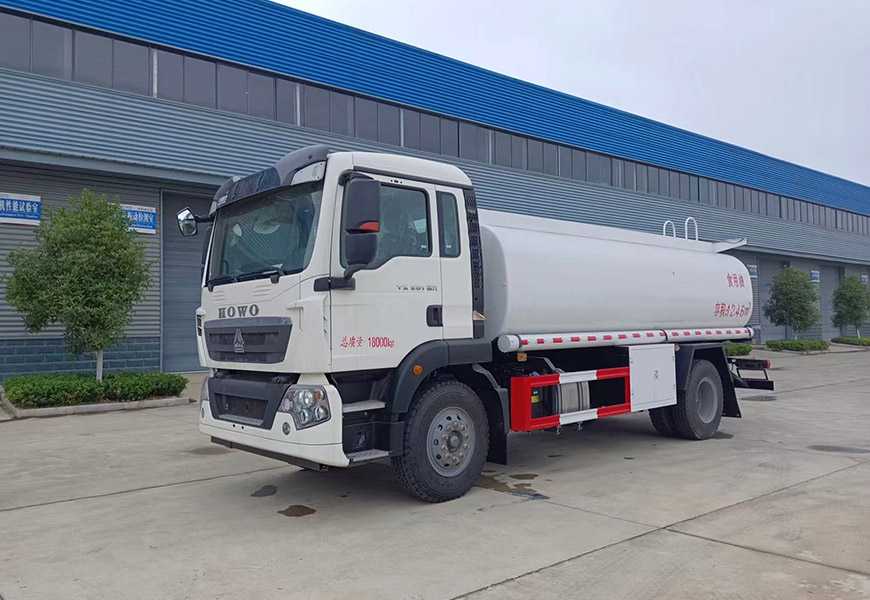

Edible oil transport vehicle |
Product Model |
CL5180GSYZ6 |
|
Total mass (kg) |
18000 |
Tank volume (m3) |
12.46 |
|
Rated load capacity (Kg) |
9565,9500 |
External dimensions (mm) |
8230×2500×3200 |
|
Curb weight (kg) |
8305 |
Cargo box dimensions (mm) |
×× |
|
Rated passenger capacity (persons) |
|
Permitted gross vehicle weight (kg) |
|
|
Number of passengers allowed in the driver's cab (persons) |
3,2 |
Maximum load capacity of the saddle (Kg) |
|
|
Approach angle/departure angle (°) |
19/12 |
Front overhang/rear overhang (mm) |
1430/2300 |
|
Axle load (Kg) |
6500/11500 |
Maximum speed (km/h) |
89,101 |
| Chassis technical parameters | |||
|---|---|---|---|
|
Chassis Model |
ZZ1187K501GF1 |
Chassis Name |
Cargo truck chassis |
|
Trademark Name |
Howo brand |
manufacturing enterprises |
China National Heavy Duty Truck Group Jinan Truck Co., Ltd. |
|
Number of axes |
2 |
Number of tires |
6 |
|
Wheelbase (mm) |
4500 |
||
|
Tire specifications |
10.00R20 18PR,295/80R22.5 18PR, 12R22.5 18PR,11.00R20 18PR,275/80R22.5 18PR |
||
|
Number of leaf springs |
11/9+8, 3/9+8, 3/3+2, 2/3+2, 3/-, 2/-, 2/3, 7/7+6, 7/7+3 |
Front track width (mm) |
1950, 2035, 1910, 1930 |
|
Fuel types |
diesel fuel |
Rear track width (mm) |
1848, 1860 |
|
Emission standards |
GB17691-2018 Country VI |
||
| Main vehicle configuration | |||
|---|---|---|---|
| Chassis configuration | Howo TX5; Special purpose vehicle; TX-M cab; Manual rearview mirrors; Main engine + simple auxiliary seat; MC07.25-60 engine; HW95508STC gearbox + HW45ZC flange-type PTO; 1094 self-adjusting arm front axle (drum); MCJ11BG self-adjusting arm single rear axle (drum); Gear ratio 5.29; Double-layer frame (7+4/250); Front and rear super-strong multi-leaf springs (11/9+8); Domestic steering gear; Standard exhaust system; ABS (4S/4M); Center bumper (non-metallic); 11.00R20; 200L fuel tank; Rotary PTO; China National Heavy Duty Truck Intelligent Connectivity D version; | ||
| Upper body configuration | Effective tank volume: 15 cubic meters; standard configuration: Q235 steel plate (optional: 304 stainless steel plate (4.2m cylinder) or aluminum alloy plate (6mm cylinder)); carbon steel tank body: 4.5mm thick; carbon steel end caps: 4.75mm thick; baffles: 4mm thick; includes one standard tank opening; includes an 80-60 standard pump for pumping in and out; 3-inch piping; 3-inch outlet; all other accessories are made of carbon steel; other specifications are as per manufacturer's standards; chassis certificate, vehicle certificate, and registration invoice provided… | ||
