| Vehicle technical parameters | |||
|---|---|---|---|
|
Product Trademark |
Chengli brand |
Announcement batch |
372 (Extended) |
|
Product Name |

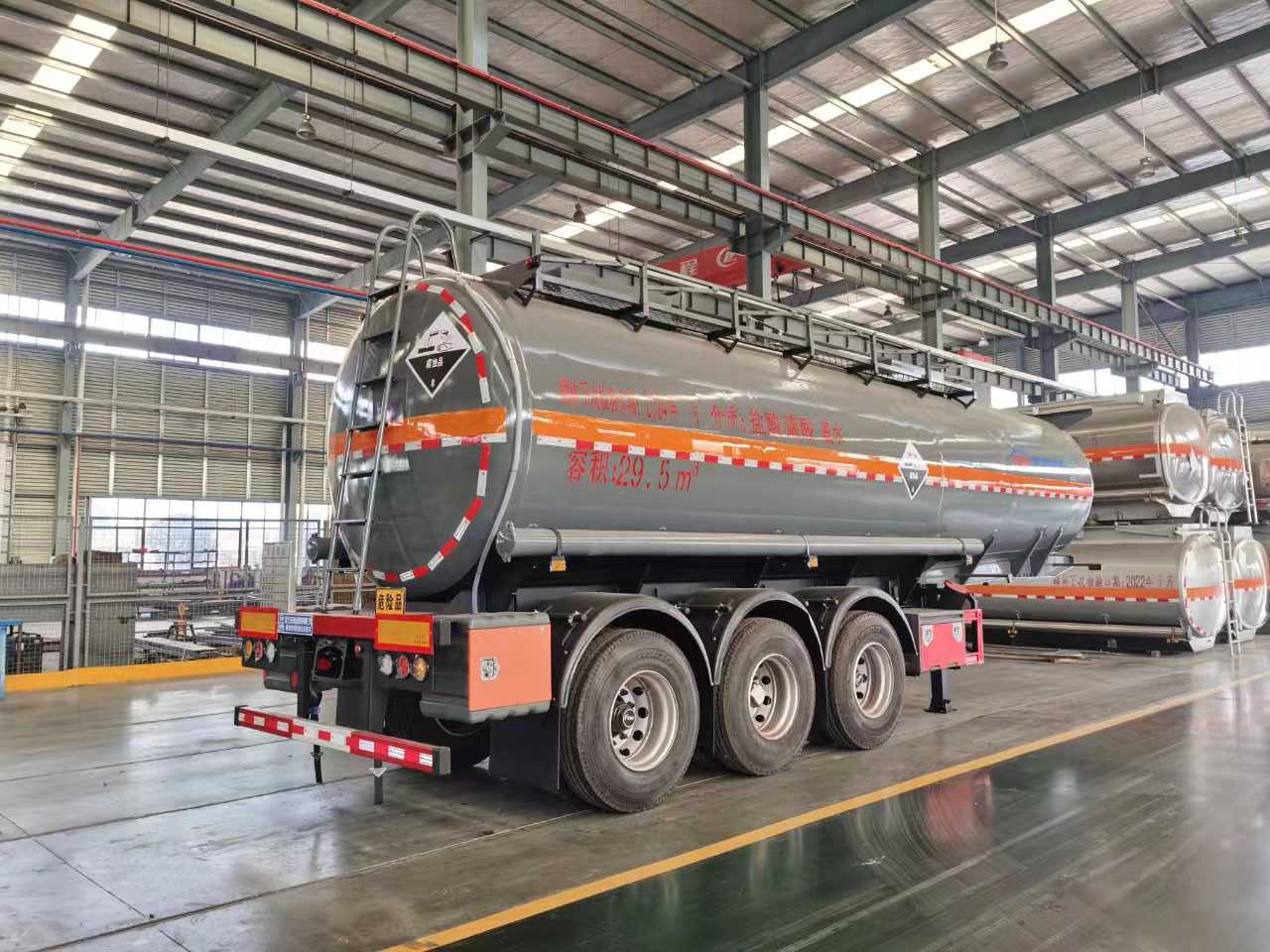

Tank semi-trailer for transporting corrosive materials |
Product Model |
CL9405GFW |
|
Total mass (kg) |
40000 |
Tank volume (m3) |
29.5 |
|
Rated load capacity (Kg) |
31000 |
External dimensions (mm) |
10200×2500×3800 |
|
Curb weight (kg) |
9000 |
Cargo box dimensions (mm) |
×× |
|
Rated passenger capacity (persons) |
|
Permitted gross vehicle weight (kg) |
|
|
Number of passengers allowed in the driver's cab (persons) |
|
Maximum load capacity of the saddle (Kg) |
16000 |
|
Approach angle/departure angle (°) |
-/17 |
Front overhang/rear overhang (mm) |
-/1450 |
|
Axle load (Kg) |
-/24000 (three-axis group) |
Maximum speed (km/h) |
|
| Chassis technical parameters | |||
|---|---|---|---|
|
Chassis Model |
|
Chassis Name |
|
|
Trademark Name |
|
manufacturing enterprises |
|
|
Number of axes |
3 |
Number of tires |
12 |
|
Wheelbase (mm) |
4700+1310+1310 |
||
|
Tire specifications |
12R22.5 12PR |
||
|
Number of leaf springs |
-/-/-/- |
Front track width (mm) |
- |
|
Fuel types |
|
Rear track width (mm) |
1840/1840/1840 |
| Main vehicle configuration | |||
|---|---|---|---|
| Upper body configuration | The tank has an effective volume of 29.5 cubic meters, a 16mm thick plastic lining, and is constructed from Q235 carbon steel plate with a 4.2mm thick tank body and 4.75mm thick end caps. It features two plastic feed inlets, one stainless steel safety valve, and gravity-flow valves at the rear (equipped with one 4-inch stainless steel PTFE-lined bottom valve with a voice alarm and two 3-inch PTFE ball valves with outlets). Standard configuration for the vehicle includes a three-axle semi-trailer with 10-ton Fuwa axles, three-axle disc brakes, EBS, and three-axle air suspension. It comes with twelve Linglong 12R22.5 tubeless tires, standard steel rims, 28-ton single-action outriggers, a toolbox, and a spare tire rack. Other configurations are as per factory specifications. A vehicle certificate of conformity, tank inspection report, and vehicle registration invoice will be provided. | ||
