| Vehicle technical parameters | |||
|---|---|---|---|

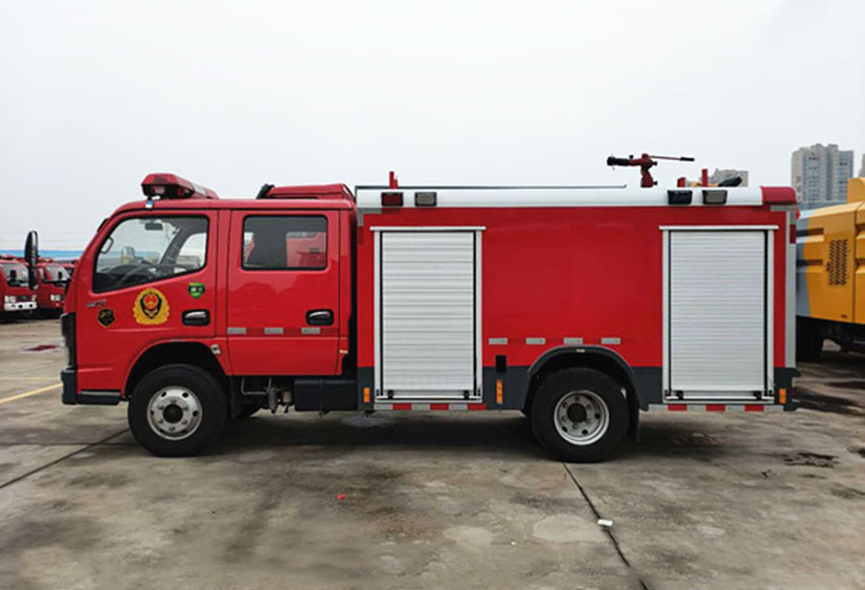

| Vehicle Model | CLW5070GXFSG20/DF | Product Name | Water tanker fire truck |
| Total mass (kg) | 7000 | Product Trademark | Chengliwei brand |
| Rated load capacity (Kg) | 2000 | Water tank volume (m3) | 2 cubic meters |
| Curb weight (kg) | 4625 | External dimensions (mm) | 5990×1980×2660 |
| Approach angle/departure angle (°) | 19/16 | Water tank dimensions (mm) | 960×1880×1150 |
| Passenger capacity | 2+3 | Maximum speed (km/h) | 100 |
| Chassis technical parameters | |||
|---|---|---|---|
| Chassis Name | Dongfeng brand | Chassis Model | EQ1075DJ3CDF |
| Number of axes | 2 | Number of tires | 6 |
| Wheelbase (mm) | 3308 | Tire specifications | 7.00R16 |
| Exemption/Environmental Protection Announcement | have | Fuel types | diesel fuel |
| Emission standards | National VI | Engine Model | Q28-130E60 |
| Main vehicle configuration | |||
|---|---|---|---|
| Main configuration: | Modified from the original Dongfeng chassis EQ1075DJ3CDF, the vehicle has a compact structure. The special-purpose components consist of a liquid tank, pump room, equipment box, power output and transmission system, pipeline system, and electrical system. It is widely applicable to urban public security fire brigades, petrochemical plants, factories and mines, forests, ports, docks and other departments. It can quickly approach the fire scene to carry out firefighting operations and extinguish various fires, making it an ideal firefighting equipment. | ||
| Performance Description: | The cab is a welded all-steel frame structure, with the front of the crew compartment connected to the cab. It features a double-row, four-door configuration. The material used is high-quality carbon steel (Q235A) with a plate thickness of 4 mm. A stainless steel tank is optional, ensuring durability. The equipment compartment doors are manufactured using European technology with concealed overlapping aluminum alloy profiles and a fully riveted structure. They utilize aluminum alloy curtain doors with roller and sliding guides for easy opening and closing with low noise. The side and rear flip-up steps of the equipment compartment are double-fixed with gas springs and door stop devices, ensuring reliable safety. In addition to the original vehicle equipment, the cab roof has a long row of warning lights at the front, and a 24V/60W fire scene lighting lamp is installed at the rear of the vehicle. Each side of the vehicle is equipped with red and blue flashing lights above and safety indicator lights below. The crew compartment, equipment compartment, and pump room are all equipped with lighting. The cab is also equipped with a power take-off control indicator light, a 100W siren, a rotary warning light switch, and a communication equipment interface. | ||
