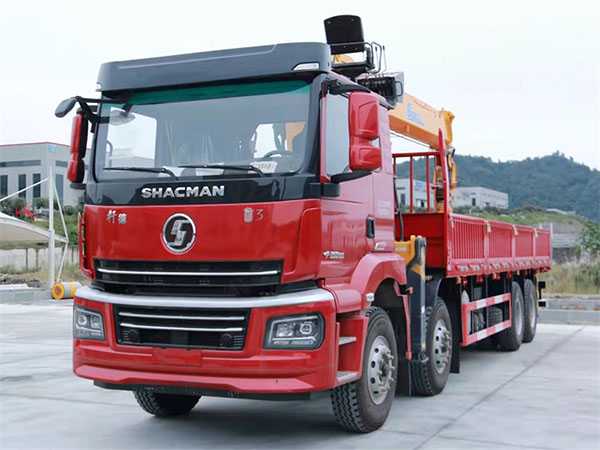

| Key Technical Data of Shaanxi Automobile Xuandeyi 3 8x4 XCMG 14-ton Truck Crane (National VI Emission Standard) | |||
| Product Name | Truck-mounted crane transport vehicle | Trademark Name | Shaanxi Automobile |
| Product Model | YZZ5318JSQ6MJ | Cargo box dimensions (mm) | 7800, 8200, 8300, 8400×2400, 2450×500, 550, 600 |
| Passenger capacity (persons) | 2 | External dimensions (mm) | 12000×2500, 2550×3750, 3850, 3950 |
| Total mass (kg) | 31000 | Approach/departure angle (°) | 21/10 |
| Rated weight (kg) | 10070,11370 | Front overhang/rear overhang (mm) | 1525/2400 |
| Curb weight (kg) | 20800, 19500 | Maximum speed (km/h) | 89 |
| Vehicle Description |
Notes: Optional features include front lights, front bulkhead, side panels, front bumper exterior, rearview mirrors, sun visors, cargo box style and panel structure, front outriggers and operator's seat position, and rear outriggers. This vehicle is equipped with a driving recorder with satellite positioning function. Only available with a wheelbase of 2100+4575+1400. |
||
| National VI emission standard Shaanxi Automobile Xuandeyi 3 8x4 XCMG 14-ton truck crane chassis parameters | |||
| Chassis Model | SX1312MP6466 | Types of fuel | diesel fuel |
| Number of axes | 4 | Front track width (mm) | 2058/2058, 2011/2011 |
| Wheelbase (mm) | 2100+4575+1400 | Rear track width (mm) | 1860/1860 |
| Number of tires | 12 | Tire specifications | 12.00R20, 11.00R20 |
| National VI emission standard Shaanxi Automobile Xuandeyi 3 8x4 XCMG 14-ton truck crane engine parameters | |||
| Engine Model | Engine manufacturers | Displacement (ml) | Power (kW) |
|
YCK08350-60 YCK08300-60 |
Guangxi Yuchai Machinery Co., Ltd. Guangxi Yuchai Machinery Co., Ltd. |
7698 7698 |
257 221 |
